Anticipating the global movement towards solutions that preserve the environment, improve the comfort of workers and minimize negative impact on the neighborhood, Geismar proposes a new global approach towards a sustainable railway world “the sustainable way to rail” which consolidates all its innovative electrically-powered solutions under the name Activion systems.

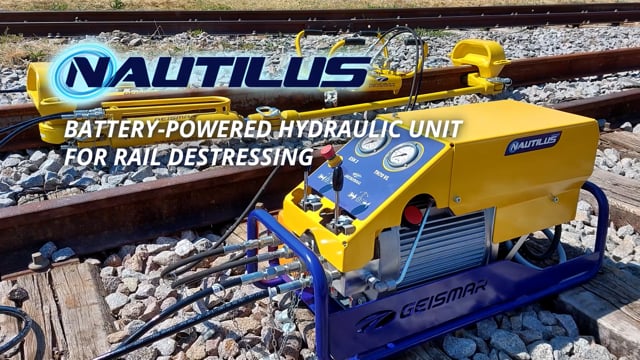

Compact and powerful, the Nautilus battery-powered hydraulic unit offers a decarbonated solution for rail destressing operations
Equipped with a dual output, it can feed one rail tensor and one thermite weld shearing machine, or two tensors to work on two lines of rails simultaneously
Extremely quiet thanks to its battery-powered technology, it can be used on all destressing operation sites, including urban areas and confined spaces
Brushless electric motor for lighter weight, longer life and reliability
Equipped with speed control of hydraulic flow for greater precision and ease of use
Technical data
Key specifications
Power
1 500 W
Motor
Brushless
Number of machines that can be connected
2 simultaneously
Hydraulic pressure
From 325 to 700 bars depending on option*
Dimensions (L x W x H)
33 x 18 x 18 in. (835 x 445 x 460 mm)
Total weight (without battery)
132 lbs (60 kg)
Battery specifications
Embedded energy
1 404 Wh
Tension
46,8 V
Battery capacity
30 Ah
Weight (without carrying system)
22 lbs (10 kg)
Ambient conditions
- Operating temperature: -4 to +104 °F (-20 à +40 °C)
- Storage temperature: -24to +140 °F (-20 à +60 °C)
- Charging temperature : 32 to +122 °F (0 à +50 °C)
