Battery-powered impact wrench

Mantis

Battery-powered impact wrench

Mantis

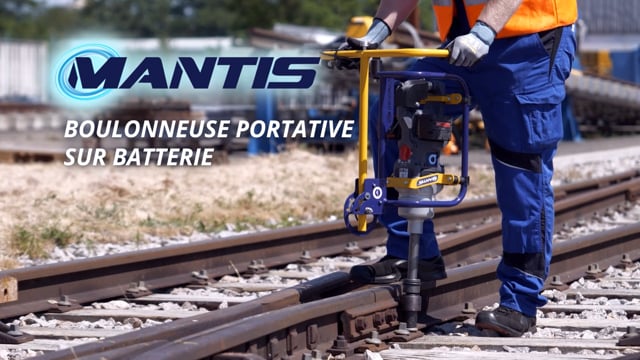

The Mantis battery-powered impact wrench provides up to 4,000 N.m of torque. Its proportional control and patented vibration-absorbing chassis guarantee intensive and comfortable use, even in tight spaces. It includes an innovative articulated arm and ensures complete power control.

Battery

Powerful

Benefits Downloads

Driven by a striking mechanism developing up to 4,000 N.m when untightening, the Mantis is simply the most powerful battery-powered railway impact wrench on the market
Thanks to its proportional throttle, power is delivered precisely and controlled directly by the handle
Designed for intensive use, the Mantis is built on a patented technology including a shock-absorbing chassis that allows a full day of continuous work
Activion electric technology for greater ease of use, even in confined or restricted spaces
Its innovative articulated arm incorporating the main control allows operations to be carried out from a standing position and easy positioning on coachscrews and fishplate bolts
The rotation direction reversal control featuring a three-position torque limiter is easily accessible whatever the position of the machine, and allows total control of the machine’s power

Maximum unscrewing torque	4 000 N.m
Adjustable screwing torques	200 / 550 / 3,000 N.m
Output square	1" - 25.4 mm
Tension	36 V (2 x 18 V)
Number of batteries in use	2
Battery capacity	180 Wh (2 x 5 Ah) 288 Wh (2 x 8 Ah)
Autonomy on unjammed bolts and screws in concrete sleepers	600 cycles with 2 x 5 Ah batteries 900 cycles with 2 x 8 Ah batteries
Autonomy on jammed bolts and screws in wooden sleepers	150 cycles with 2 x 5 Ah batteries 230 cycles with 2 x 8 Ah batteries
Charging time	≈ 2 h
Rotation speeds	500 / 540 / 890 rpm
Dimensions in running order (L x W x H)	30 x 21 x 33 in. (760 x 535 x 840 mm) bolting 31 x 21 x 15 in. (780 x 535 x 385 mm) coachscrewing
Mass in working order	45 lbs (20.5 kg) with two 5 Ah batteries 47 lbs (21.3 kg) with two 8 Ah batteries
Mass without battery nos socket	40 lbs (18.3 kg)
Battery mass	5 Ah: 2 x 1.5 lbs (0.7 kg) 8 Ah: 2 x 2.4 lbs (1.1 kg)
Protection class	IP56
Operating temperatures	-0.4 to 122°F
Hand-arm vibration level	Vertical use 2,6 m/s2 Horizontal use 4,2 m/s2
Noise level	Lp = 85 dB(A) Lw = 98 dB(A)

Technical details are for information only

Accessories
	Sockets (various sizes available)
	1‘’ drive reducer to enable the use of 23 mm drive sockets and the ball mounts used with Geismar coachscrewing machines
	Graffenstaden drill bit holder for drilling ties
	Universal joint 1”/1” for horizontal use of the machine with low obstacles
	3-roller support trolley for 1,435 mm track (various sizes available)

Technical details are for information only
