Battery-powered rail drill

NARVAL

Battery-powered rail drill

NARVAL

Battery

Ecological

Comfort

To print Contact us share

Benefits Downloads Videos

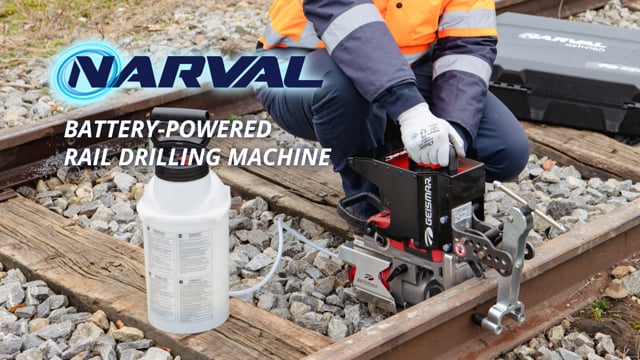

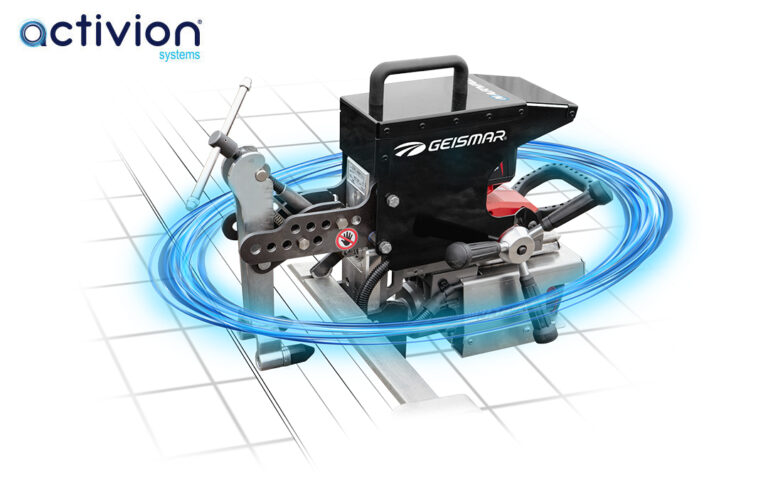

The battery-powered Narval rail drill has 2 speed settings and is suitable for both bit and twist drills
Equipped with a quick clamping device and clamping shapes, the machine is perfectly held to the rail (Vignole or groove rail) and can be positioned at the desired drilling height, for optimal safety

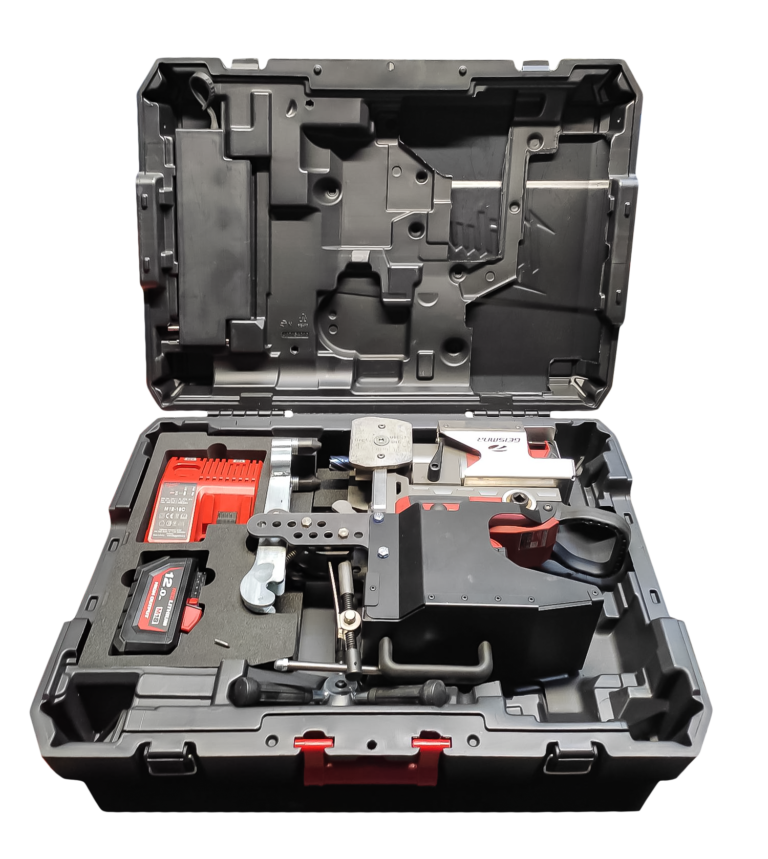

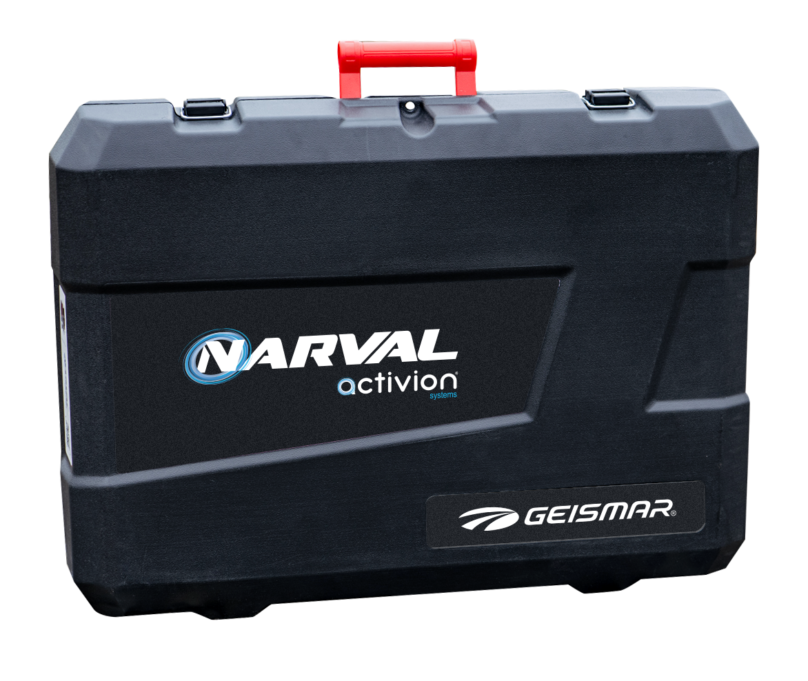

Easy to transport thanks to its reduced weight (16.4 kg/35 lbs) and its case containing the accessories
Maximum comfort of use thanks to low vibration levels at the handles and LED lighting of the working area
Its drilling gauge (accessory) allows precise longitudinal positioning of the machine to drill holes at a predefined distance from the rail end
Quiet and emission-free, it is ideal for use in confined spaces and offers immediate: the motor starts immediately and is maintenance-free

Battery capacity	216 Wh
Autonomy	≈ 28 holes of ⌀24 mm with one battery
Drilling time	Between 12 and 60s depending on the diameter
Tension	18 V
Max. drilling diameter	40 mm (1.58 in.)
Max. rail hardness for standard drills	270 HB
Max. rail hardness for premium drills	325 HB
Rotation speeds	690 rpm (speed for twist drills) 400 rpm (speed for drill bits)
Dimensions in working order (L x W x H)	580 x 145 x 420 mm (22.8 x 5.7 x 16.5 in.)
Spindle	Weldon 19.05 Click & Go fastening system
Protection class	IP23
Operating temperatures	From -18°C to +50°C
Hand-arm vibration level	2.3 m/s²
Battery charging time	≈ 2 h
Mass in working order	16.4 kg (36 lbs)
Mass (without battery)	14.6 kg (32 lbs)
Pressurized tank capacity	5 L

Technical details are for information only

Accessories
	Drilling gauge
	Clamping shapes

Technical details are for information only

Standard twist drills

(various diameters available)

Standard hollow drills

(various diameters available)

Premium hollow drills

(various diameters available)
