Activion Modular Maintenance Vehicle

EMMA

Activion Modular Maintenance Vehicle

EMMA

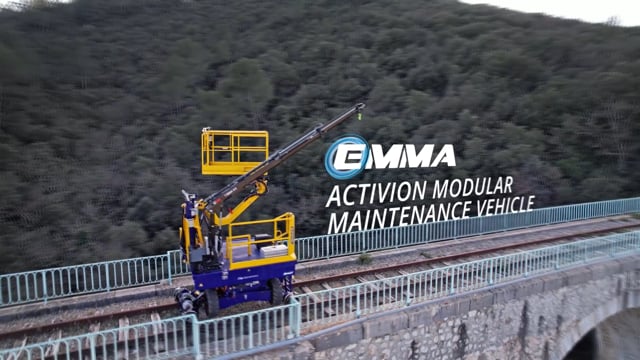

The 100% electric, modular EMMA road-rail vehicle is the new benchmark in terms of flexibility and ergonomics, designed for maintenance and inspection operations on railway installations. Its innovative concept of a single road-rail base means that work modules can be changed directly in the workshop, as and when required, and all its equipment can be powered.

Modularity

Ecological

Compact

Benefits Downloads

An innovative concept offering a range of possibilities in a single device: the railway “all-in-one” for maintenance and inspection operations on railway installations
Various modules available without having to change the machine base
Cable unwinding and reshaping, inspection, renewal, crew support, working at height…
Plug & Work System for quick and easy module replacement and storage (2 people are all you need)
Activion technology: 100% electric operation to provide drive and power for base and module

Base specifications
Electric traction power	- On rail: 8 kW continuous on each of 2 axles (22 kW peak) - On road: 11 kW continuous on each of 4 wheels
Gauge	1,435 mm Others on request
Maximum cant	160 mm
Maximum rail ramp	80 ‰
Maximum road ramp	30 %
Minimum rail radius	18 m
Maximum track speed	20 km/h
Maximum road speed	2.5 km/h
Base dimensions (L x W x H)	3,008 x 2,310 x 1,324 mm
Base weight	2,950 kg
Maximum weight	5,800 kg
Track load	1,500 kg
Autonomy (depending on activity)	5 h of guaranteed work / Max 15 h
Example specification Platform + crane + pantograph
Max. working height / offset in the basket	6.3 m / 2.8 m
Extendable and rotatable platform	1.2 m x 1.8 (extendable to 2.8 m) Dual-axis compensator
Maximum platform payload	250 kg
Rotation	200°
Maximum crane load	250 kg at 3 m
Tare weight	2,245 kg
Miscellaneous	- Measuring and rail-mounting pantograph - Secure, sturdy case
Possible modules
	Platform + crane + pantograph
	Platform + positioning arm
	Double gondola + pantograph
	Working platform + crane
	Stanchion tray + hydraulic power pack or Activion®

Technical details are for information only
